How the Empire State Building Is Pioneering the Future of Energy Efficiency - Greening the world’s most iconic skyscraper. The Empire State's State Iconic but aging, the Empire State was an energy suck. Now its undergoing an energy overhaul that will cut its energy consumption by nearly 40 percent.

The Empire State Building, arguably the world’s most famous office tower, is 1,472 vertical feet of historic American real estate. It also contains 2.8 million square feet of office space, constructed to the energy efficiency standards of the early 1930s. So when Anthony Malkin took over management of the building several years ago, he also inherited an $11 million annual energy bill and a problem: How could he turn the iconic but aging building into a 21st-century office tower?

Now, a sweeping $13.4 million energy retrofit is slashing the Empire State Building’s energy consumption by nearly 40 percent and reducing greenhouse gas emissions by 105,000 metric tons over the next 15 years while trimming $4.4 million from annual energy costs. We took a firsthand look at what such a massive and meaningful project looks like, starting in a nondescript corner of the fifth floor where the Empire State Building is turning two-decade-old glass into future dollars.

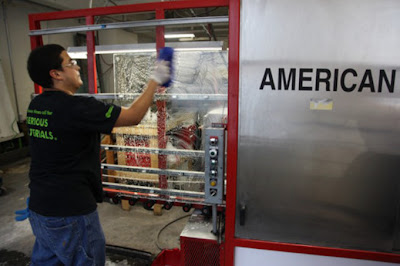

 It’s here that 100 double-pane windows per day are ripped from their aging frames, put through a rigorous cleaning process, treated with a thin UV-resistant film, and pumped full of pressurized argon and krypton gasses that improve their insulation values. By the time the retrofit is complete, all 6,514 windows will have been refurbished at a cost more than $1,600 per window less expensive than replacing them would be.

The window rehab – and other projects like it – reduces the energy load on the building, which in turn allows the engineers behind the retrofit to find efficiencies elsewhere. It’s all part of an 8-point plan that will eventually reduce the building’s energy consumption by 38.4 percent and its expenses by a few million dollars each year. With a footprint the size of the Empire State Building’s, that’s game-changing not just for the building, but also for the city and the world.

“Eighty percent of the energy consumed in New York City is consumed by buildings,” says Malkin, who is president of Malkin Holdings, part-owner of the Empire State Building. “Not by cars, not by buses, not by taxis, not by subways, not by trains. Even more interestingly, 20 percent of the buildings consume 80 percent of that energy. So 64 percent of all energy consumed in New York City is consumed by 20 percent of the buildings. That really took me by surprise.”

The Empire State Building fell into that energy-sucking 20 percent, so perhaps it was no surprise that the Clinton Climate Initiative took an interest in the building. In 2007, a representative for CCI approached Malkin seeking a building in which to demonstrate the foundation’s green retrofit program. Malkin was in the midst of a massive renovation project spanning his company’s entire portfolio, so he offered up a building at Broadway and 35th street in Midtown Manhattan.

The CCI pressed for something bigger. If it could turn the world-renowned Empire State into a model for efficiency, the whole world would take notice. At the time, the Empire State Building consumed the same amount of energy as 40,000 single-family homes, a figure that is unfortunately not unique; 43 percent of office space in New York City was constructed before the end of World War II, much of it comprising that 20 percent of buildings consuming the majority of the city’s energy. Greening the Empire State Building and skyscrapers like it wouldn’t just benefit real estate owners and their tenants; it would significantly move the dial on the entire city’s energy consumption.

Malkin agreed for reasons both altruistic and self-interested. “This is all about making money,” Malkin says bluntly of the retrofit. “To me, the whole concept of ‘green’ is a misnomer. The world is getting greenwashed. If you can’t prove it economically, it doesn’t matter.” Malkin and the CCI set out to prove not only that enhanced energy efficiency is a cost-effective means of controlling expenses, but to create an economically feasible model that can be implemented by any building anywhere.

“If we succeeded only at the Empire State Building, we failed,” Malkin says. “It had to be broadly adoptable and malleable, and it had to be quantitative." To create a cost-effective retrofit regimen, the project would have to be carefully managed. Malkin and the Empire State Building brought in technology and management experts from Johnson Controls and real estate consultants Jones Lang Lasalle, as well as the green-thinkers at the Rocky Mountain Institute, to craft a suite of technologies that not only incrementally reduce energy consumption but that have a multiplying effect on one another that generates further efficiency.

For Paul Rode, business development director for building efficiency at Johnson Controls, this synergistic effect was crucial. The retrofit team considered more than 60 off-the-shelf technologies and practices. They came up with eight initiatives that together were more effective than the sum of their parts. “If we take any one of these items out, the overall reduction values of the others change disproportionately,” he says.

The technology package attacks the problem from three sides. First, the team found ways to reduce the existing load on the building’s infrastructure by rehabbing the windows, installing better insulation behind the more than 6,500 radiators in the building and outfitting offices with occupancy sensors, better lighting controls, and layouts that maximize natural daylight. They also improved the efficiency of existing systems, retrofitting (rather than replacing) the chiller plant and replacing old air handling equipment with fewer and more efficient units.

The third component entails smartly controlling energy use. New York City’s tallest building is now home to America’s largest wireless control system. Carbon dioxide sensors throughout the building determine exactly how much outside air needs to be brought into the building at a given time, cutting down on unnecessary circulation, and occupancy sensors allow the building to better allocate air and manage lighting. And the Empire State's wireless thermostat sensors, unlike the hard-wired variety, can be moved around an office space to ensure they are placed where the temperature is average (rather than, say, tucked behind the copier or coffee machine where they record a falsely warm ambient temperature).

The same occupancy sensors that manage air allocation and lighting also tell the building’s management which offices are leaving the lights or the coffee maker on when no one is around. Offices are individually metered – and billed – and metering information is archived and provided to tenants online so they can see when and how they are using the most energy. That kind of meaningful information helps tenants manage thier behaviors to trim their own energy use – and expense. The Empire State Building's management is a partner in the entire process, helping each tenant figure out how it can reduce its load on the building.

“Tenants are drawn to us because tenants’ largest three expenses are salary, rent, and utilities,” Malkin says. “The ability to control expense is extremely important. The work that we are doing is not just from the perspective of our own building systems, but we’ve created a suite of services to help tenants achieve things that give them tremendous payback for their own spaces, their own investments.”

As for Malkin’s investment, he’s paying out $13.4 million incrementally for the retrofit, an investment that should save him $4.4 million per year. That means his capital investment in green tech will pay for itself in just three years, two years ahead of schedule. And by creating a competitive advantage for tenants, the building creates a monetary incentive for tenants to be conscious of their own energy consumption. Which, as Malkin is quick to point out, is how you really initiate change. “It’s not just about doing the right thing for the sake of doing the right thing,” he says. “It’s about making money by doing the right thing.”
